T pipe fittings in water treatment systems often encounter severe corrosion. This corrosion leads to system failures, contamination, and costly repairs. Professionals address this challenge by selecting appropriate materials. They also apply protective coatings. Furthermore, implementing effective maintenance strategies ensures system integrity and longevity for T pipe fittings.
Key Takeaways
- Corrosion in water pipes causes big problems. It makes pipes break and water dirty. Choosing the right materials and coatings helps stop this.
- Different materials like stainless steel, plastics, and special fiberglass resist rust. Each works best for certain water conditions. This keeps pipes strong.
- Good design, careful installation, and regular checks keep pipes safe. This includes avoiding different metals touching and cleaning pipes often. These steps make pipes last longer.
Understanding Corrosion in Water Treatment T Pipe Fittings
Types of Corrosion Affecting T Pipe Fittings
Corrosion manifests in various forms within water treatment systems. Uniform corrosion involves a general attack over the entire surface. Pitting corrosion creates localized holes, often leading to rapid penetration. Galvanic corrosion occurs when two dissimilar metals connect in an electrolyte. Crevice corrosion initiates in confined spaces, while erosion-corrosion results from combined mechanical wear and chemical attack. Each type poses distinct threats to the integrity of components.
Factors Accelerating Corrosion in Water Treatment Environments
Several environmental factors significantly accelerate corrosion, particularly in components such as T Pipe Fittings. Water chemistry plays a critical role. Acidic water, characterized by a low pH, accelerates corrosion in metal pipes. Conversely, very alkaline water can also create problems for specific pipe materials. Slightly alkaline water, however, helps prevent corrosion of pipes and fittings. Dissolved oxygen levels also influence corrosion rates; higher concentrations often increase oxidation. Furthermore, soft or corrosive water accelerates the leaching of lead and copper from plumbing. Higher lead concentrations typically appear in softer water with a lower pH. Excessive iron in water leads to rusty discoloration and staining. If iron bacteria are present, they can cause gelatinous sludge and pipe encrustation. Temperature and flow velocity also impact corrosion kinetics.
Consequences of Corrosion in Water Treatment Systems
Corrosion in water treatment systems leads to severe operational and safety consequences. It causes system failures, necessitating costly repairs and downtime. Corroded components can introduce contaminants into the treated water, compromising water quality and public health. Reduced flow efficiency and increased pumping costs result from internal pipe scaling and blockages. Ultimately, corrosion shortens the lifespan of infrastructure, leading to premature replacement of expensive equipment.

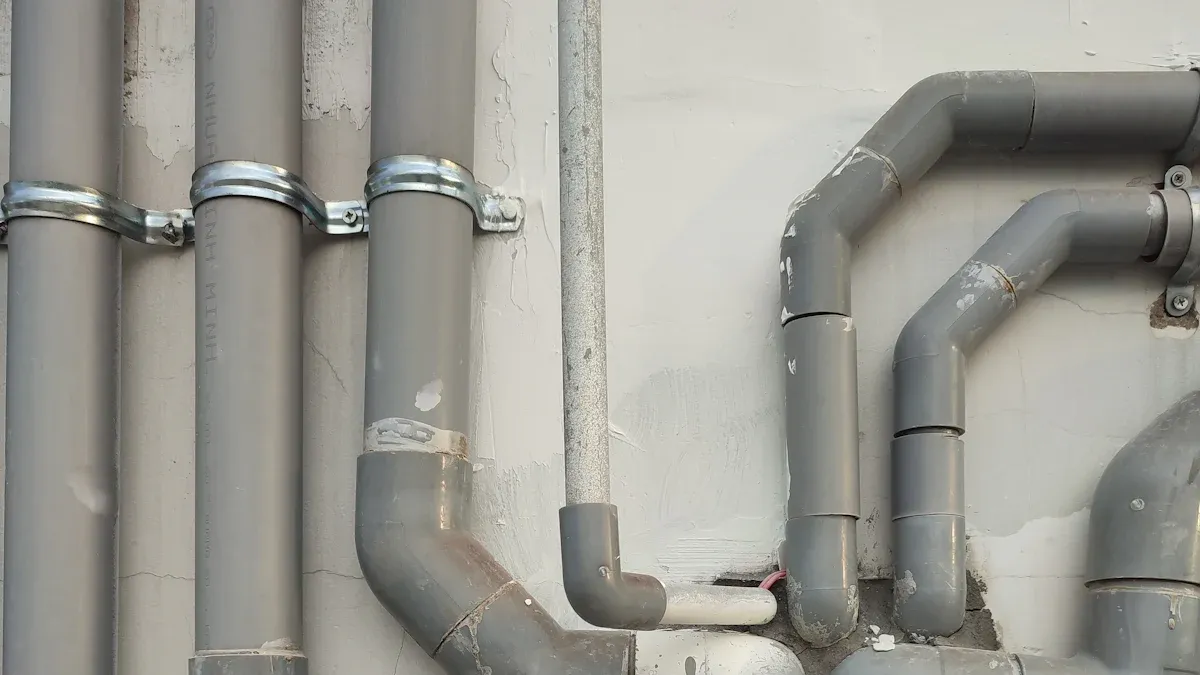

Material Selection for Corrosion-Resistant T Pipe Fittings
Choosing the right material for T pipe fittings is crucial for preventing corrosion in water treatment systems. Different materials offer varying levels of resistance to specific corrosive agents and environmental conditions. Careful selection ensures system longevity and operational efficiency.
Stainless Steels for T Pipe Fittings
Stainless steels are a popular choice for water treatment applications due to their excellent corrosion resistance. They contain chromium, which forms a passive layer on the surface, protecting the metal from oxidation.
- 304 Stainless Steel: This grade is widely used. It offers excellent corrosion resistance and formability. It contains 18% chromium and 8% nickel. This makes it suitable for general-purpose applications and a standard choice for many piping systems.
- 316 Stainless Steel: This grade includes molybdenum. It provides superior corrosion resistance, especially against chlorides and in marine environments. It is preferred for chemical processing, coastal installations, and pharmaceutical applications where increased corrosion resistance is necessary.
Municipal water treatment plants and desalination facilities utilize stainless steel fittings due to their longevity and reliability. The material’s resistance to chlorine and other treatment chemicals ensures decades of trouble-free service. This protects public health while minimizing maintenance requirements.
Duplex stainless steel offers enhanced corrosion resistance. Duplex stainless steel (UNS S31803) exhibits a Pitting Resistance Equivalent Number (PREN) of 35. This is superior to Type 304 and Type 316 stainless steels. It also resists stress corrosion cracking, which is important in applications like desalination plants. Duplex stainless steel does not tend to suffer from stress corrosion cracking (SCC). Super Duplex 2507 (UNS S32750) is a high-alloy super duplex stainless steel. It has a minimum PRE value of 42. This makes it ideal for applications requiring exceptional strength and corrosion resistance. Its high molybdenum, chromium, and nitrogen content contribute to its resistance to corrosion, chloride pitting, and crevice corrosion attack. The duplex structure provides remarkable resistance to chloride stress corrosion cracking. This makes it particularly suited for aggressive environments such as warm chlorinated seawater and acidic, chloride-containing media. Super Duplex 2507 is available as various fittings, including T pipe fittings. Super Duplex UNS S32750 demonstrates excellent corrosion resistance in various corrosive media. This includes outstanding resistance to pitting and crevice corrosion in seawater and other chloride-containing environments. It has a Critical Pitting Temperature exceeding 50°C. It also has excellent resistance to stress corrosion cracking in chloride environments. This makes it suitable for oil and gas industries where subsea equipment faces harsh chloride conditions.
Non-Ferrous Alloys in T Pipe Fittings
Non-ferrous alloys, such as brass, also provide effective corrosion resistance in specific water treatment scenarios. Brass alloys exhibit very good to excellent corrosion resistance. Polishing or applying a protective coating like lacquer, enamel, or a plated surface treatment can prevent any natural patina.
Brass offers fantastic resistance to corrosion, particularly from mineral-heavy water. This makes it a prime choice for drinking water applications. It is a robust material capable of handling moderate pressures and temperatures. Brass is easy to machine, allowing for precise, tight-sealing threads. It is widely used in potable water systems, including fittings, valves, and tapware. A 20mm x 1/2″ brass threaded reducing tee has a maximum working pressure of 10 bar. Its operating temperature range is 0-60°C. This fitting is compatible with 20mm PVC pressure pipe and spigot fittings, and 1/2″ BSP male threaded fittings. It is suitable for water processing and treatment applications.
Plastics and Polymers for T Pipe Fittings
Plastics and polymers offer a lightweight and cost-effective alternative to metals. They provide excellent resistance to many chemicals. ABS and PVC are commonly used plastics for pipework and fittings in water treatment, including systems for potable water. ABS is particularly suitable for low-temperature applications. It remains ductile at temperatures as low as -40ºC. For low-temperature applications, ABS pipework is recommended as it maintains its ductility at temperatures down to -40ºC.
PVC T pipe fittings are resistant to chlorinated water. This makes them suitable for use in swimming pools, spas, and leisure facilities. They are also used in water treatment facilities for transporting both raw and treated water. This is due to their durability and resistance to scaling and corrosion, even when exposed to aggressive chemicals. PVC-U demonstrates excellent chemical resistance to most solutions of acids, alkalis, salts, and water-miscible solutions. It is not resistant to aromatic and chlorinated hydrocarbons. Prolonged exposure of the joint’s interior to certain acid concentrations may lead to cement bonding deterioration. This includes sulphuric acid over 70%, hydrochloric acid over 25%, nitric acid over 20%, and hydrofluoric acid in all concentrations. PVC T pipe fittings exhibit excellent chemical resistance to most solutions of acids, alkalis, and salts, as well as solvents that can be mixed with water.
Fiberglass Reinforced Plastic for T Pipe Fittings
Fiberglass Reinforced Plastic (FRP) provides an excellent solution for highly corrosive environments where metallic options may fail. FRP/GRP is a lightweight and robust solution. It resists impact, corrosion, and chips. This makes it suitable for demanding environments like water treatment facilities. It naturally does not corrode. It is non-sparking and can handle a wide range of chemicals. This makes it ideal for aggressive environments.
FRP exhibits excellent corrosion resistance, extending lifespan in diverse environments. Its lightweight nature simplifies the installation process. It is resilient against a variety of chemicals, suitable for demanding environments. A smooth interior surface facilitates efficient water flow. It finds its forte in specialized applications due to chemical resistance and durability. FRP also benefits from low electrical conductivity, suitable for areas near electrical installations. Low thermal conductivity prevents it from being ‘cold to the touch’ in extreme temperatures.
Protective Coatings and Linings for T Pipe Fittings
Protective coatings and linings offer an essential layer of defense against corrosion for T pipe fittings and other components in water treatment systems. These applications create a barrier between the aggressive water environment and the underlying material. This significantly extends the service life of the fittings and maintains system integrity.
Epoxy Coatings for T Pipe Fittings
Epoxy coatings provide robust protection for various components, including T pipe fittings, in water treatment facilities. These coatings form a hard, durable layer that resists chemical attack and abrasion. For example, Sikagard®-140 Pool, an acrylic resin coating, demonstrates resistance to chlorinated water and typical swimming pool cleaning agents. These include acidic and alkaline detergents and disinfectants. This resistance holds true when operators use controlled water treatment equipment. However, higher chlorine concentrations, exceeding 0.6 mg/l, or ozone treatment, as per DIN 19643-2, may lead to chalking or discoloration of the surface. This might require refurbishment for aesthetic reasons. This specific coating is not suitable for pools employing electrolysis-based disinfection.
Epoxy coatings, particularly those with Drinking Water Inspectorate (DWI) approval, are widely recognized in the water storage sector. They offer robust chemical resistance and durability. They effectively protect against a broad spectrum of chemicals, including chlorine. Chlorine is a common disinfectant in drinking water treatment. Water purification systems commonly construct tanks and frames from epoxy-coated steel to ensure corrosion resistance. Additionally, skids often use MS epoxy-coated materials. These materials are NACE certified for maximum corrosion resistance.
Polyurethane Coatings for T Pipe Fittings
Polyurethane coatings offer another effective solution for protecting T pipe fittings and other piping components. These coatings are known for their flexibility, toughness, and excellent abrasion resistance. Polyurethane linings are applied to the interior surfaces of pipes. They protect against both corrosion and abrasion. This is particularly beneficial in systems where water carries suspended solids or flows at high velocities. Applying polyurethane coatings to pipes helps extend their lifespan. This reduces the frequency of replacements and maintenance.
Rubber Linings for T Pipe Fittings
Rubber linings provide a flexible and resilient protective layer for T pipe fittings, especially in applications involving abrasive slurries or aggressive chemicals. Manufacturers apply various types of rubber, such as natural rubber or synthetic elastomers, to the interior surfaces of fittings. These linings absorb impact and resist wear from particulate matter. They also offer excellent chemical resistance to a wide range of acids, alkalis, and salts. Rubber linings are particularly effective in environments where thermal expansion and contraction might stress more rigid coatings.
Glass Linings for T Pipe Fittings
Glass linings offer exceptional chemical resistance, making them suitable for the most aggressive water treatment environments. These linings consist of a thin layer of glass fused to the metal surface of T pipe fittings and other equipment. The smooth, non-porous surface of glass linings prevents adhesion of scale and biological growth. This maintains flow efficiency and reduces cleaning requirements. Glass linings are highly resistant to strong acids and bases, even at elevated temperatures. This makes them ideal for specialized applications where other protective measures might fail.
Design and Installation of Corrosion-Resistant T Pipe Fittings
Effective design and careful installation are critical for preventing corrosion in water treatment systems. These practices ensure the longevity and reliability of components. They also reduce maintenance needs.
Minimizing Stress Points and Crevices in T Pipe Fittings
Designers should minimize stress points and crevices in T Pipe Fittings. These areas can trap corrosive agents. They also create localized environments where corrosion accelerates. Smooth transitions and rounded corners help reduce stress concentrations. Proper fabrication techniques prevent sharp edges and gaps. This design approach limits sites for crevice corrosion. It also improves overall system integrity.
Proper Jointing Techniques for T Pipe Fittings
Correct jointing techniques are essential for corrosion resistance. Weld joints must be smooth and free of defects. These defects can act as initiation sites for corrosion. Flanged connections require proper gasket selection and bolt tightening. This prevents leaks and maintains a tight seal. Threaded connections need appropriate sealants. These sealants prevent fluid ingress and subsequent corrosion.
Avoiding Dissimilar Metal Contact in T Pipe Fittings
Galvanic corrosion occurs when dissimilar metals connect in an electrolyte. Designers must avoid direct contact between different metals. To prevent galvanic corrosion between pipes made of different materials, dielectric connectors are frequently employed. These connectors typically comprise nuts, internal threads, and external threads. They facilitate the connection while providing electrical isolation. TM198 is a pliable thermoplastic barrier coating applied as a melted resin. It effectively protects metal components, including piping, from galvanic pitting and atmospheric corrosion. This coating also offers protection against water and dust ingress. It is suitable for electrical conductor isolation. Its dielectric strength has been tested according to ASTM D149.
Ensuring Proper Drainage and Preventing Stagnation in T Pipe Fittings
Proper drainage prevents water stagnation. Stagnant water can lead to localized corrosion. Design systems with slopes and drain points. This ensures complete emptying during shutdowns. Avoid dead legs or areas where water can collect. Regular flushing also helps remove corrosive substances and prevents biofilm formation.

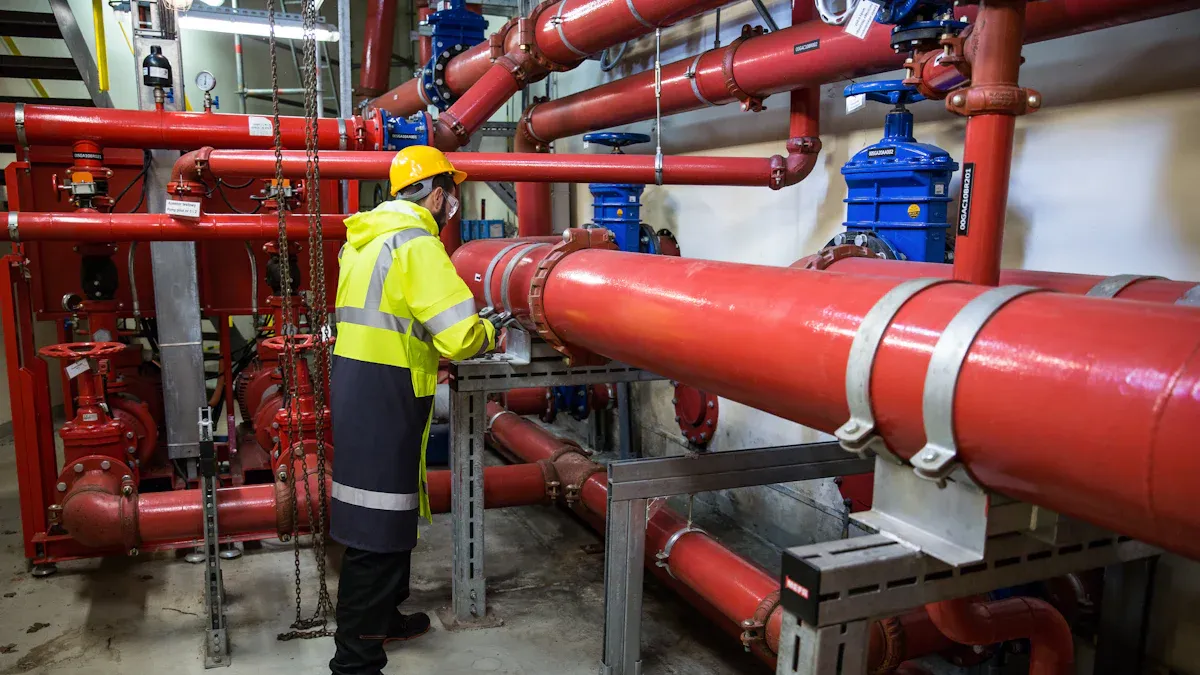

Maintenance and Monitoring for T Pipe Fittings Longevity
Effective maintenance and vigilant monitoring significantly extend the lifespan of T pipe fittings. These practices prevent premature failure and ensure continuous system operation. They also reduce overall operational costs.
Regular Inspection and Condition Monitoring of T Pipe Fittings
Operators conduct routine visual inspections of T pipe fittings. They look for signs of external corrosion, leaks, or physical damage. Facilities also employ non-destructive testing (NDT) methods. Ultrasonic testing or eddy current testing assesses internal wall thickness and detects hidden defects. These regular checks identify potential problems early. Early detection allows for timely intervention.
Water Chemistry Management for T Pipe Fittings
Proper water chemistry control is crucial for corrosion prevention. Facilities continuously monitor pH levels, chlorine concentrations, and dissolved oxygen. Maintaining optimal ranges for these parameters minimizes corrosive reactions. Water treatment plants often add corrosion inhibitors. These chemicals form a protective film on metal surfaces. This film shields the fittings from aggressive water constituents.
Cleaning and Descaling Practices for T Pipe Fittings
Regular cleaning removes scale, sediment, and biofilm from T pipe fittings. These deposits can create localized corrosive environments. Mechanical cleaning methods, such as pigging or brushing, remove loose debris. Chemical descaling agents dissolve stubborn mineral buildup. Effective cleaning maintains hydraulic efficiency and prevents accelerated corrosion.
Repair and Replacement Protocols for T Pipe Fittings
Facilities establish clear protocols for addressing damaged T pipe fittings. Minor issues, like small leaks, may permit temporary repairs using clamps or sealants. However, extensive corrosion, cracks, or significant material loss necessitates immediate replacement. Maintaining an inventory of spare fittings ensures quick repairs. This minimizes system downtime and maintains operational integrity.
Effective corrosion resistance in T pipe fittings for water treatment requires a multi-faceted approach. Professionals combine informed material selection, strategic protective coatings, meticulous design, and diligent maintenance. These solutions significantly enhance the longevity, efficiency, and safety of water treatment systems.
FAQ
What is the most common type of corrosion affecting T pipe fittings?
Pitting corrosion frequently affects T pipe fittings. It creates localized holes. This can lead to rapid penetration and system failure. Galvanic corrosion also occurs when dissimilar metals connect.
Why do professionals often choose stainless steel for T pipe fittings?
Professionals choose stainless steel for its excellent corrosion resistance. It forms a passive layer. This layer protects the metal from oxidation. Grades like 316 offer superior resistance to chlorides.
How do protective coatings enhance the lifespan of T pipe fittings?
Protective coatings create a barrier. This barrier separates the fitting material from corrosive water. This prevents chemical attack and abrasion. Coatings like epoxy and polyurethane extend the service life significantly.
